    Location:Home >> Vehicle Mobile Safety Systems

zoom in the picture
Item Number

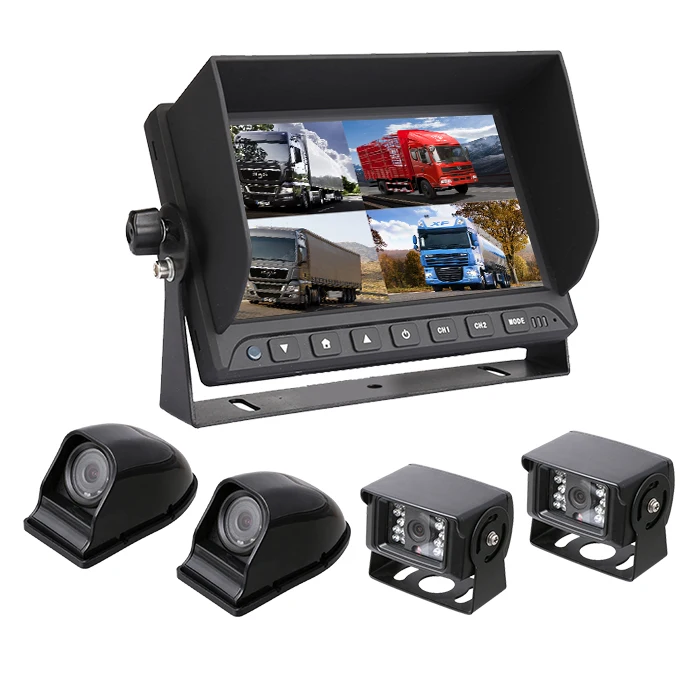

10.1 Inch truck security system
Categories:
Vehicle Mobile Safety Systems
summarization:
10.1 Inch truck security system

Specifications:
Type:
10.1-inch 4-channel ahd split display
Screen type:
TFT LCD
Screen size:
10.1 inch
Screen resolution:
1024 * 600
Angle:
full view
Function:
parkassist / four screen simultaneous display / video tape
Voltage:
9-36v
Working temperature range:
- 20 ° - 80 °
Input signal:
720p / 960p / 1080p
Input resolution:
1 million / 2 million pixels
Power waste:
≤ 6W
Support language:
China, Britain, France, Germany, Italy, Japan, South Korea, Russia and Portugal
Warranty:
12 months
Memory capacity:
128GB

--4Pin DIN waterproof screw on connector or RCA connector optional
--Standard rear view camera
--The automatic day/night sensor and infrared LEDs to provide clear image in dull condition

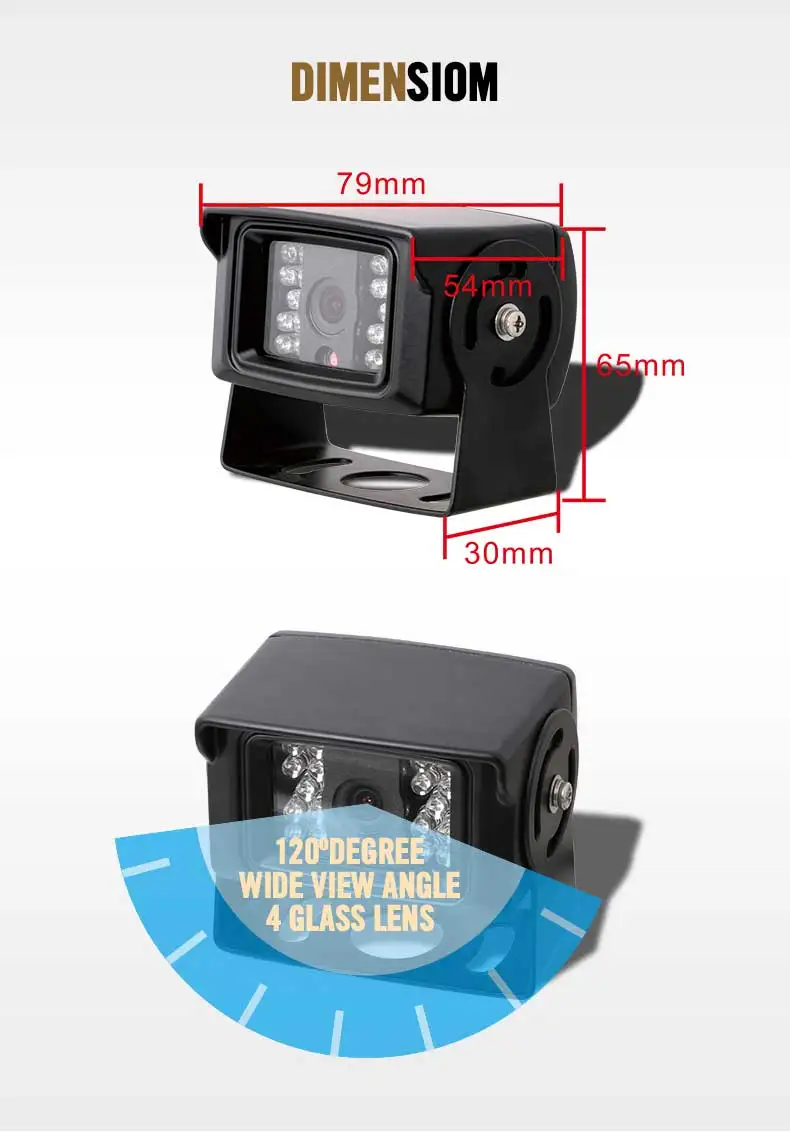

Camera:

(1)1/4" Sharp Color CCD sensor
(2)TV system : PAL/NTSC
(3)Resolution: 800 TV lines
(4)With 18 IR LED light ,night vision distance up to 10-15 meters
(5)Self-sensitization control the night vision function by the light sensor
(6)120 degree wide range angle view
(7)Operating Voltage: 9~12VDC
(8)Operating temperature: -20~ +70 degrees , RH95% Max.
(9)Storage temperature: -40~ +80 degrees , RH95% Max.
(10)Alloy shell, Waterproof, silver/black color selectable

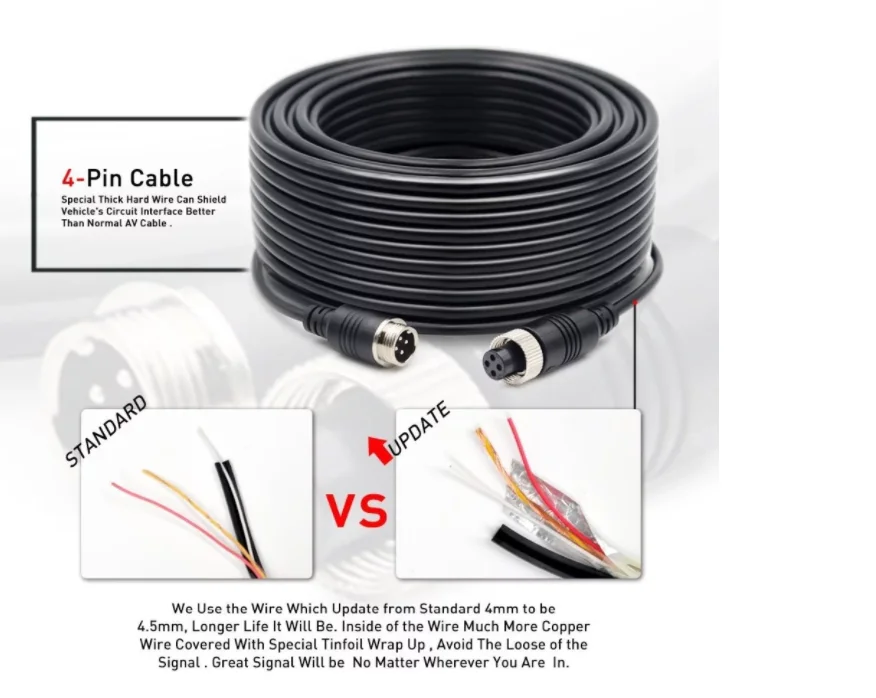

CABLE
--4 Pole Screw Locking Extension Cable
--Design for Car Rear View Systems using in long vehicle
--One Male connect(4 pin) and the other female connector(4 socket)
--Color: Black
--Length: 5m, 15m, 20m or Customized

Our high quality quad monitor are ideal for monitoring a wide range of vehicles below.
